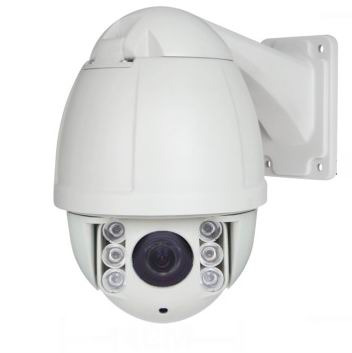

Function Characteristic:
..waterproof with IR,Make use of 10x HD color zoom camera as module.
..The indoor monitoring system shares a series of excellence, such as full-angle, non-blind, aesthetic, delicate, compact, high performance and easy installation.
.. Rotate 360°in horizontal direction，driven by exact engine，operate stably with Precise position-setting.
..The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance.
..Built-in OSD. Several control protocols are compatible and Baud rate is adjustable;
..Vertical 90°continuous monitoring after auto reversing 180°.
Parameter:
|
Model No . |
MSD403IR |
|
Image sensor |
1/3" Sony CCD |
|
Signal model |
PAL/NTSC |
|
Horizontal resolution |
700 TVL |
|
Effective pixel |
976（Horizontal）x 596（Vertical） |
|
Minimum illumination |
0Lux(IR On) |
|
S/N radio |
≥60dB(Enhanced) |
|
Backlight compensation |
On/Off |
|
White balance |
Auto |
|
Electronic shutter |
1/50~1/12000 seconds |
|
Focus length |
3.9~39.0mm |
|
Optical focus |
10X |
|
Focus |
Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function |
|
Presets |
256 |
|
Patrol track |
4groups, each can record 100 actions |
|
Cruise track |
Total 30 presets can join cruise, can setting the presets' residence time |
|
Other scan |
Support Horizontal scan, deuce area scan, scan random |
|
Rotation range |
Horizontal 360°unlimted rotation, Vertical 180°,auto reversal |
|
Rotation speed |
Horizontal & Vertical Min 0.01°,Max 300°/S |
|
Communications |
RS-485, PELCO D, PELCO P |
|
OSD |
Yes |
|
Temperature control |
built-in |
|
IR distance |
35m |
|
Power supply |
DC12V/2A |
|
Material |
Aluminum shell |
|
Work environment |
-20℃~+50℃(select temperature control accessories), <95%RH |
